Full Vision Padel Court
The Full Vision padel court is our most open design. Unobstructed ends and a fully panoramic structure give players and spectators complete 360° visibility.
It is the model chosen for clubs, international competitions and exhibition events. Ideal for USA venues where the court must perform for players and look great for spectators, events and media.
Why choose Full Vision
- Total visibility. Built for outdoor resistance with full 360° panoramic view.
- Premium finishes. Impact systems integrated into the lighting posts and side structures.
- International standards. FIP regulations and European standards at every stage of production.
- Maximum playing experience. High-end components on every part of the court.

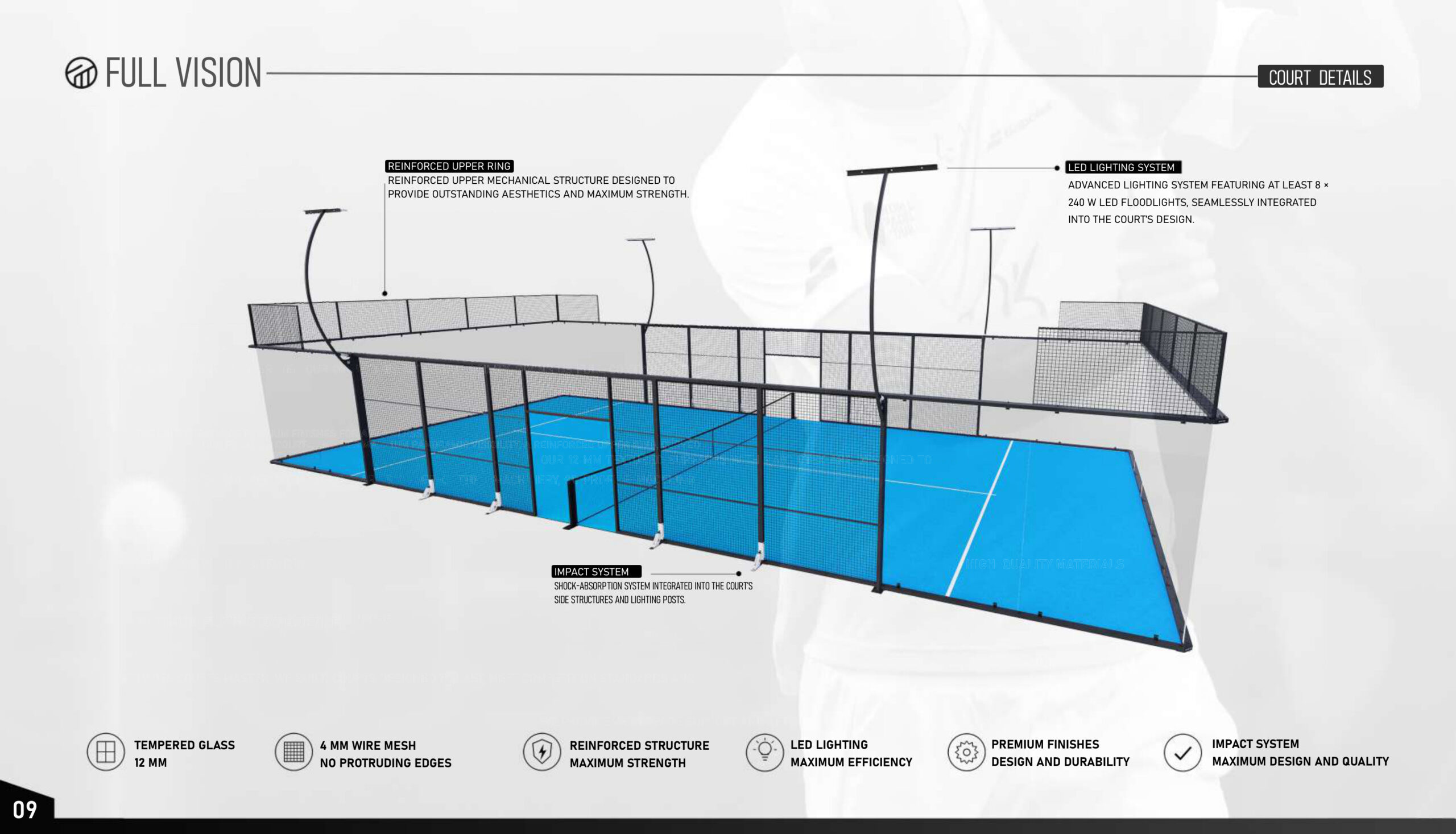

Court details
Technical specifications
| Glass | Certified 12 mm tempered glass, built to International Padel Federation (FIP) standards |
|---|---|
| Steel treatment | Hot-dip galvanized steel with oven-cured powder coating. More than 20 structure colors |
| Mesh frames | 8 frames of 3,000 × 2,000 mm and 4 frames of 3,000 × 1,000 mm in 60 × 40 × 2 mm steel, with internal 60 × 5 mm flat-bar reinforcements |
| Wire mesh | 4 mm wire mesh with no protruding edges |
| Upper mesh panels | 4 mm mesh on a 60 × 6 mm steel flat bar with 30 × 20 mm side profiles |
| Corners | Unobstructed ends for complete 360° visibility |

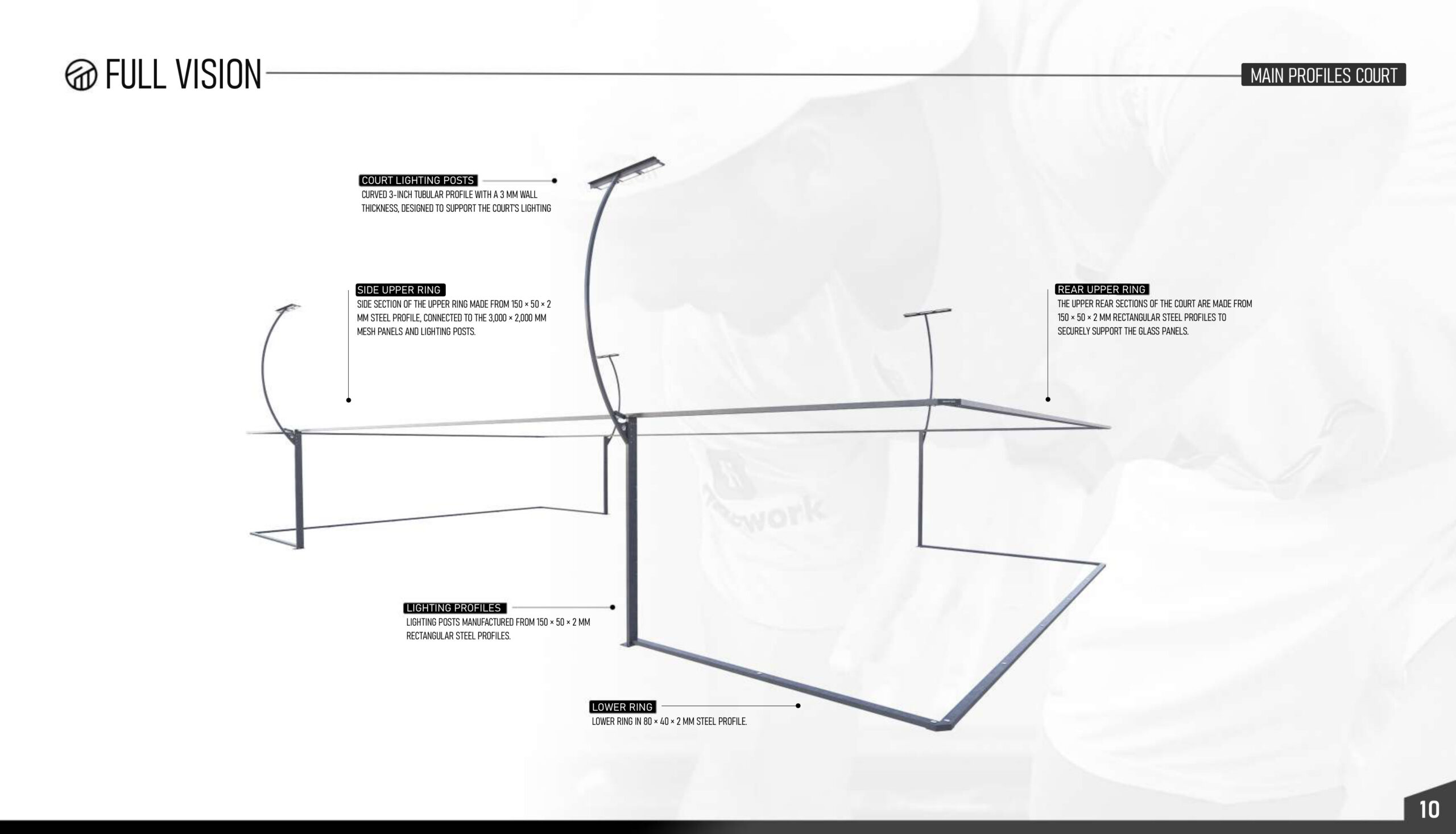

| Lower ring | 80 × 40 × 2 mm steel profile |
| Upper ring | 150 × 50 × 2 mm rectangular steel profiles on the sides and rear, supporting mesh panels and glass |
| Lighting posts | Curved 3-inch tubular profile with 3 mm wall, on 150 × 50 × 2 mm rectangular steel profiles |
| LED lighting | At least 8 × 240 W LED floodlights. Shadow-free light over 400 lux |
| Impact system | Shock-absorption system integrated into the side structures and lighting posts |
| Turf | 12 mm textured turf, 48,000 stitches, available in several colors |
| Fasteners | Stainless steel with protective plastic caps |
| Warranty | More than 5 years |
Frames, turf and lighting
Every court is hot-dip galvanized and powder coated in more than 20 colors. Choose your turf color and get shadow-free light over 400 lux.
